不光是生信,感觉整个生物领域越来越靠图吃饭了。谁的图漂亮,谁的分析就好。好吧,我也承认,图多图漂亮了,确实显得高大上哈。在我眼中图的信息量比较大,能够给人直观的表示,为了说明图的意义,我没把持住,在本文多放了几张和circos图无关的图,见谅。本文有多图,都是本人自己画的,请勿盗图,如果你想知道怎么做或者由更好的表示办法,欢迎留言讨论。

想当年,我为了表示SNP在染色体上的数目分布,用python画了24个图,每个染色体一张SNP的密度分布。那可是我第一次用matplot。

先上我年yi轻qian时做的图,那个时候我都佩服自己能想出可以用图的形式来表示突变的密度,哈哈哈,因为这样就能很直观的看出哪些地方突变频率比较高,突变频率比较高的地方,可能是突变热点区域,在肿瘤研究中常常有意义。

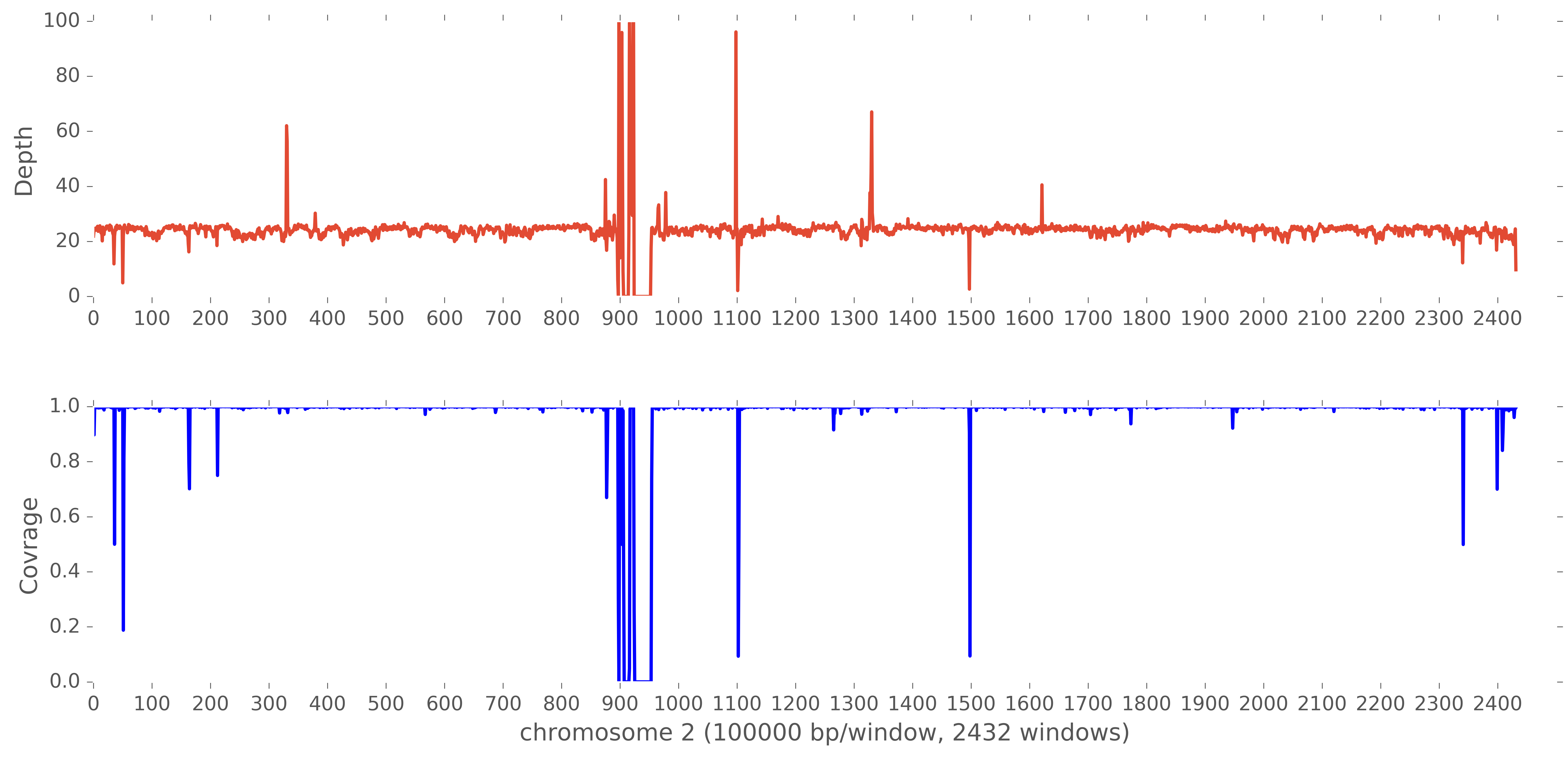

上面的两张图都比较丑,下面表示覆盖度和测序深度的图还算凑活。通过depth我们能够发现测序深度在整个染色体上比较均匀,为20X多。通过coverage我们可以看出,整条染色体的大部分都被reads覆盖到了。这种表示方法远比单纯告诉你测序深度多少要靠谱的多,你不仅能够看出染色体每个区域的测序深度,还能看到测序覆盖到的区域,很直观,不用列一堆数据在那,表示的信息量却相当丰富。这就是图的意义所在。

其实那个时候我就想到了可以用circos图表示,但是那个时候项目催的急,我很久之前帮一个师兄玩过一次circos图,不想那么麻烦了。最近越看越觉得丑,实在看不下去了,遂决定用circos来表示,顺便复习一下用circos作图。

circos我用的circos自带的测试数据,data/6/snp.number.1mb.txt。

我一共画了三圈,最外面的一圈,表示karyotype,包括染色体带,这个需要在配置中设置show_bands = yes,中间的一圈,用热图的形式表示每个区域内的突变的数目,第三圈用线来表示突变的数目,不过设置了orientation = in,让它朝内。突变的数目其实对应突变密度,只不过数量级不一样罢了。

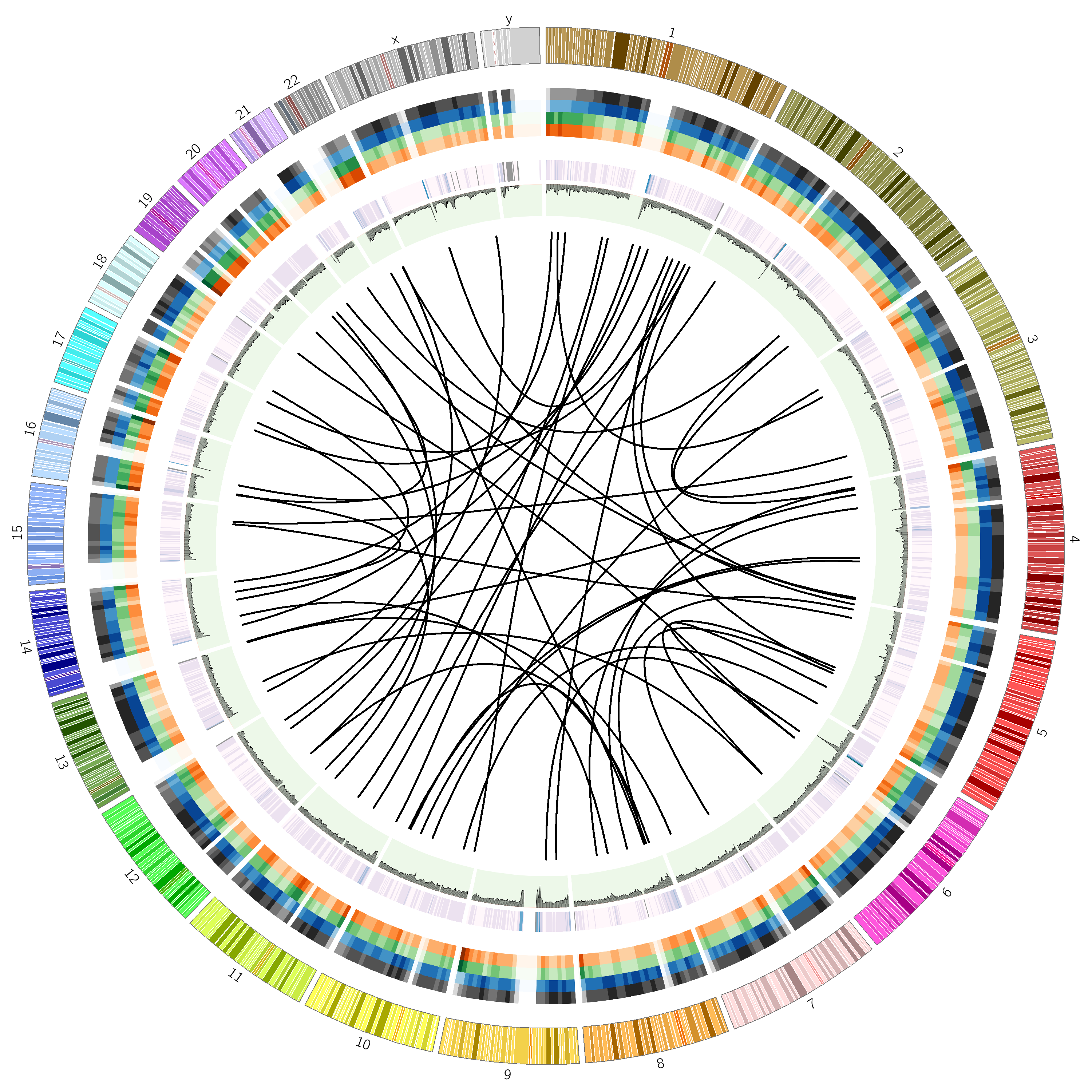

上circos图,真心比我以前的图漂亮多了,而且是同一张图把整个基因组上的突变密度都表示出来了,非常直观漂亮。要是加上结构突变,覆盖度的信息,就更完美了,perfect!以后我会添上去的,嗯。

这里想提一下,各位有空可以看看circos作者提到的关于图片美学的论述,看后受益匪浅,不过我现在都忘了,囧。这也让我想到了ggplot2,这些搞艺术的,理论真强悍。人家画出的图就是漂亮,yes!

Circos图最大的优势是它以圈(track)的形式来表示,且可以画很多圈,能够表示的维度远比二维的要多。

下面的内容我主要介绍下如何在Windows下安装circos,以及circos的配置文件。

windows下安装circos

下载perl,安装 https://www.perl.org/get.html#win32

下载circos,解压缩 http://circos.ca/software/download

下一步需要安装其他的模块http://circos.ca/tutorials/lessons/configuration/perl_and_modules/

cd /path/to/circos/bin
perl circos -modules # 检查缺失的模块

ok       1.36 Carp
missing            Clone
missing            Config::General
ok       3.56 Cwd
ok      2.158 Data::Dumper
ok       2.54 Digest::MD5
ok       2.85 File::Basename
ok       3.56 File::Spec::Functions
ok     0.2304 File::Temp
ok       1.51 FindBin
missing            Font::TTF::Font
missing            GD
missing            GD::Polyline
ok       2.45 Getopt::Long
ok       1.16 IO::File
missing            List::MoreUtils
ok       1.41 List::Util
missing            Math::Bezier
ok     1.9997 Math::BigFloat
missing            Math::Round
missing            Math::VecStat
ok       1.03 Memoize
ok       1.53 POSIX
missing            Params::Validate
ok       1.64 Pod::Usage
missing            Readonly
missing            Regexp::Common
missing            SVG
missing            Set::IntSpan
missing            Statistics::Basic
ok       2.53 Storable
ok       1.20 Sys::Hostname
ok       2.03 Text::Balanced
missing            Text::Format
ok     1.9726 Time::HiRes

用PPM:进入安装的perl文件夹下的bin文件夹,右击ppm,选择perl打开
用cpan
perl -MCPAN -e shell
o conf urllist push http://mirrors.163.com/cpan/
o conf urllist push ftp://mirrors.sohu.com/CPAN/
o conf commit
install Clone
install Config::General
install Font::TTF::Font
install GD
install GD::Polyline
install List::MoreUtils
install Math::Bezier
install Math::Round
install Math::VecStat
install Params::Validate
install Regexp::Common
install Readonly
install SVG
install Set::IntSpan
install Statistics::Basic
install Text::Format

circos配置文件

####################configuration file###################

karyotype = test/karyotype.test.txt

default = 0.005r

## http://circos.ca/documentation/tutorials/quick_start/ticks_and_labels/configuration
# Ideogram position, fill and outline
radius           = 0.95r
# 控制宽度
thickness        = 50p
fill             = yes
stroke_color     = dgrey
stroke_thickness = 2p

# Minimum definition for ideogram labels.

show_label       = yes
# see etc/fonts.conf for list of font names
label_font       = default
label_radius     = dims(image,radius) - 60p
label_size       = 30
label_parallel   = yes

# band 配置来自http://circos.ca/documentation/tutorials/2d_tracks/tiles/configuration
show_bands            = yes
fill_bands            = yes
band_stroke_thickness = 2
band_stroke_color     = white
band_transparency     = 4

################################################################
# The remaining content is standard and required. It is imported
# from default files in the Circos distribution.
#
# These should be present in every Circos configuration file and
# overridden as required. To see the content of these files,
# look in etc/ in the Circos distribution.

# http://circos.ca/documentation/tutorials/2d_tracks/stacking_tracks/images
# http://circos.ca/documentation/tutorials/2d_tracks/stacking_tracks/configuration

show             = yes
type             = heatmap
color            = spectral-5-div
#stroke_thickness = 1
#stroke_color     = black
file             = /data/6/snp.number.1mb.txt
#内圈
r0               = 0.90r
#外圈
r1               = 0.90r + 50p
scale_log_base = 0.25
min          = 0

# http://circos.ca/documentation/tutorials/2d_tracks/line_plots/configuration

file    = /data/6/snp.number.1mb.txt

type      = line
max_gap = 1u

color   = black
fill_color = black_a4
min     = 0
# max     = 0.015
r0      = 0.85r
r1      = 0.85r + 60p
thickness   = 1

#fill_color = vdgrey_a3
# 朝里
orientation = in

color     = vvlgreen
y0        = 0.006

color     = vvlred
y1        = 0.002

# Included from Circos distribution.
<>

# RGB/HSV color definitions, color lists, location of fonts, fill patterns.
# Included from Circos distribution.
<>

# Debugging, I/O an dother system parameters
# Included from Circos distribution.
<>

####################configuration file###################

####################################################################

#版权所有 转载请告知 版权归作者所有 如有侵权 一经发现 必将追究其法律责任

#Author: Jason

###################################################################
